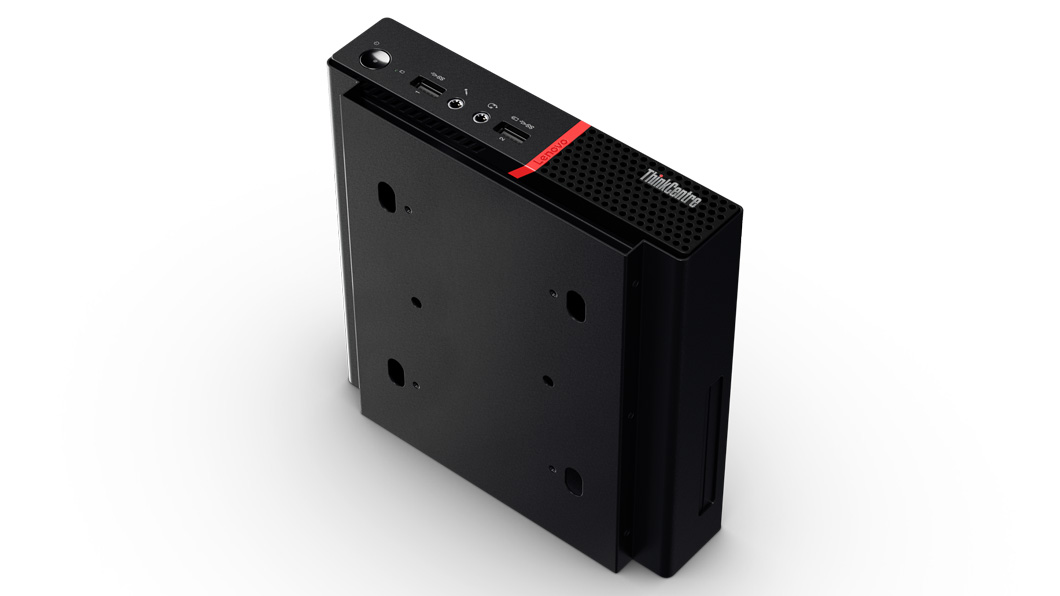

Lenovo ThinkCentre M715q (2nd Gen) – tiny – Ryzen 5 Pro 2400GE 3.2 GHz – 8 GB – 256 GB

Lenovo ThinkCentre M715q (2nd Gen) 10VG – Tiny – 1 x Ryzen 5 Pro 2400GE / 3.2 GHz – RAM 8 GB – SSD 256 GB – TCG Opal Encryption, NVMe – Radeon Vega 11 – GigE – WLAN: 802.11ac, Bluetooth 4.2 – Win 10 Pro 64-bit – monitor: none

Chassis / Form Factor: Ultra small form factor

Dimensions & Weight / Depth: 18.29 cm

Dimensions & Weight / Height: 3.45 cm

Dimensions & Weight / Width: 17.9 cm

Display / Type: None.

Hard Drive / Interface Type: PCI Express 3.0 x4

Hard Drive / Capacity: 256 GB

System / Hard Drive Capacity: 256 GB

Hard Drive / Interface: PCI Express 3.0 x4

Header / Brand: Lenovo

Header / Localization: English

RAM / Installed Size: 8 GB

Mainboard / Chipset Type: AMD B300

Miscellaneous / Product Color: Black

Networking / Data Link Protocol:

• Bluetooth 4.2

• Ethernet

• Fast Ethernet

• Gigabit Ethernet

• IEEE 802.11ac

Networking / Wireless LAN Supported: Yes

Networking / Wireless Protocol:

• 802.11ac

• Bluetooth 4.2

OS Provided / Type: Windows 10 Pro 64-bit Edition

Optical Storage / Drive Type: No optical drive

Optical Storage / Type: None

Packaged Quantity: 1

Processor / Manufacturer: AMD

Processor / Number of Cores: Quad-Core

Processor / Processor Number: 2400GE

Processor / Clock Speed: 3.2 GHz

Processor / Type: Ryzen 5 Pro

RAM / Form Factor: SO-DIMM 260-pin

RAM / Max Supported Size: 32 GB

RAM / Memory Speed: 2666 MHz

RAM / Technology: DDR4 SDRAM

Service & Support / Type: 3-year warranty

System / Type: Personal computer

Video Output / Graphics Processor: AMD Radeon Vega 11

Dimensions & Weight / Weight: 1.32 kg

General

Type: Personal computer

Product Form Factor: Tiny

Built-in Devices: Speaker

Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip

Color: Black

Localization: Language: English

Processor / Chipset

CPU: AMD Ryzen 5 Pro 2400GE / 3.2 GHz

Max Turbo Speed: 3.8 GHz

Number of Cores: Quad-Core

CPU Qty: 1

Max CPU Qty: 1

Chipset Type: AMD B300

Cache Memory

Installed Size: L2 cache – 2 MB

Cache Per Processor: 2 MB

RAM

Installed Size: 8 GB / 32 GB (max)

Technology: DDR4 SDRAM

Effective Memory Speed: 2666 MHz

Rated Memory Speed: 2666 MHz

Form Factor: SO-DIMM 260-pin

Slots: 2 (total) / 1 (empty)

Features: Dual channel memory architecture

Configuration Features: 1 x 8 GB

Hard Drive

Type: SSD – M.2

Capacity: 1 x 256 GB

Interface Type: PCI Express 3.0 x4

Features: TCG Opal Encryption, NVM Express (NVMe)

Storage Controller

Type: 1 x SATA

Controller Interface Type: SATA 6Gb/s

Channel Qty: 1

Optical Storage

Type: No optical drive

Monitor

Monitor Type: None.

Graphics Controller

Graphics Processor: AMD Radeon Vega 11

Video Interfaces: DisplayPort

Max Monitors Supported: 3

Audio Output

Sound Output Mode: Stereo

Compliant Standards: High Definition Audio

Input Device

Type: Mouse, keyboard

Keyboard

Interface: USB

Mouse

Interface: USB

Networking

Ethernet Controller: Realtek RTL8111EPV

Wireless LAN Supported: Yes

Wireless NIC: Atheros QCA6174A

Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ac, Bluetooth 4.2

Features: Wake on LAN (WoL)

Compliant Standards: DASH 1.1

Expansion / Connectivity

Bays: 1 (total) / 1 (free) x internal 2.5″

Slots: 2 (total) / 0 (free) x M.2 Card

Interfaces:

• 3 x USB 3.1 Gen 1 (2 front, 1 rear)

• 1 x microphone (1 in front)

• 1 x headphones/microphone (1 in front)

• 3 x USB 2.0

• 1 x LAN (Gigabit Ethernet)

• 3 x DisplayPort

• 1 x headphones

Miscellaneous

Included Accessories: Vertical stand

Theft/Intrusion Protection: Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch

Security Slot Type: Kensington security slot

Power

Device Type: Power adapter

Nominal Voltage: AC 120/230 V (50/60 Hz)

Power Provided: 65 Watt

Efficiency: 88%

Operating System / Software

OS Provided: Windows 10 Pro 64-bit Edition

Software: Lenovo Vantage, Linkedin

Environmental Standards

ENERGY STAR Certified: Yes

ENERGY STAR Version: 7.0

Manufacturer Warranty

Service & Support: Limited warranty – 3 years – on-site

Dimensions & Weight

Width: 17.9 cm

Depth: 18.29 cm

Height: 3.45 cm

Weight: 1.32 kg
